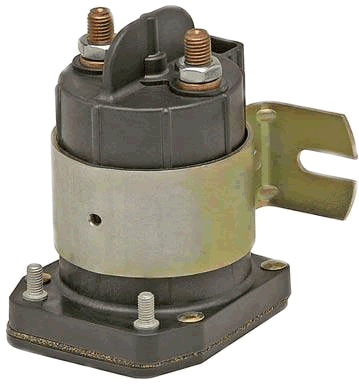

Cole Hersee 24824-01 24 Volt DC 225 Amp Continuous Duty Silver Contact Relay.
24 volt DC,225 amp 600 Amp Inrush
Auxiliary Starter Relays, Universal Relay Wiring kit for heavy duty
Hersee Relays, 12v & 24v DC Momentary and Continuous
Duty type Heavy Duty Relays.
Industrial Electric has been servicing customers in the
San Antonio Texas and surrounding area since 1981.
Please take a look through our web site, and feel free to
contact us if you have any questions .
General Specifications Part Number 24824-01
The 24824-01 is a Continuous Duty Silver Contact 225 amp rating.
Make & Brake Amperage is 225 amps with a 600 amp inrush .
The Terminal studs are 5/16 x 24.
The Coil Terminal; Studs are 10-32 .
The 24824-01 is a L bracket mounting.
The 24824-01 has Silver Contacts & Copper disk.
The 24824-01 had a insulated circuit activating coil.
The Coil Resistance is 30-31 ohms +/-
The Coil Activating amperage is .79 amps
The life cycle 30,000 minimum.
The 24824-01 is water resistant.
The bracket mounting holes are 5/16" x 19/32" on 2 13/64" centers.
