JB-3
#10
Stud Junction Block
With Nut & Lock Washer
These Studs are Insulated from each other.
Rating: 30A, 600V
Temperature Rating: 250°F (120°C)
Materials: Black thermoplastic with zinc-plated steel studs.
Termination: #10-24 threaded studs on .750" centers. Studs feature a “dog
point” to guide nut onto thread.
Torque Rating: 25 in-lb (2.8Nm) max.
Mounting Torque Rating: 24in-lb (2.7Nm) max.
30
amp Rated.
$12.50 ea.
|
JB-4
#10
Stud Junction Block
With Nut & Lock Washer
These Studs are Insulated from each other.
Rating: 30A, 600V
Temperature Rating: 250°F (120°C)
Materials: Black thermoplastic with zinc-plated steel studs.
Termination: #10-24 threaded studs on .750" centers. Studs feature a “dog
point” to guide nut onto thread.
Torque Rating: 25 in-lb (2.8Nm) max.
Mounting Torque Rating: 24in-lb (2.7Nm) max.
30
amp Rated.
$13.50 ea.
|
JB-6
#10
Stud Junction Block
With Nut & Lock Washer
These Studs are Insulated from each other.
Rating: 30A, 600V
Temperature Rating: 250°F (120°C)
Materials: Black thermoplastic with zinc-plated steel studs.
Termination: #10-24 threaded studs on .750" centers. Studs feature a “dog
point” to guide nut onto thread.
Torque Rating: 25 in-lb (2.8Nm) max.
Mounting Torque Rating: 24in-lb (2.7Nm) max.
30
amp Rated.
$20.50 ea. |

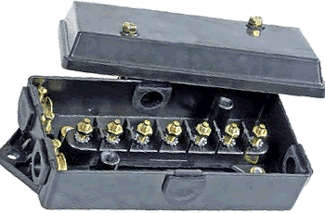

JB7-C
7 - #10
Stud Covered Water Resistant Junction Block
These Studs are Insulated from each other.
With Nut & Lock Washer
Corrosion Resistant
Molded Cover & Housing
(5) Terminal Openings
L= 8.059in / 204.7mm,
W=3.201in / 81.3mm
H=2.250in / 57.1mm
$29.50 ea.
|
JB4-312-250B
(3) = 5/16"-18 Stud Black Buss Bar
(1) = 1/4"-20
Stud
With Stainless Nuts & Lock Washer
200
amp Rated.
$25.50 ea.
|

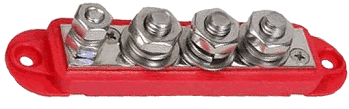

JB4-375-250R
(3) = 3/8 "-16 Stud Red Buss Bar
(1) = 1/4"-20
Stud
With Stainless Nuts & Lock Washer
200
amp Rated.
$25.50 ea.
|

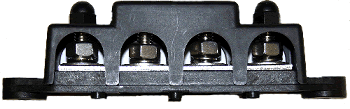

JB4-312-BC
(4) = 5/16"-18 Stud Black Buss Bar
(3) = 8-32"
Screws
With Stainless Nuts & Lock Washer
250
amp Rated.
OAL- 6-5/8", H 1-78"
5-3/4"Center To Center X
1/4" Mounting Holes
$25.50 ea.
|

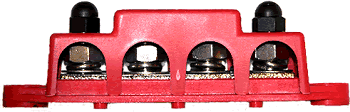

JB4-375-RC
(4) = 3/8 "-16 Stud Red Buss Bar
(3) = 8-32" Screws
With Stainless Nuts & Lock Washer
250
amp Rated.
OAL- 6-5/8", H 1-78"
5-3/4"Center To Center X
1/4" Mounting Holes
$25.50 ea.
|
JB12-250B
(1) = 1/4-20" Stud Black Buss Bar
(12) = 8-32"
Screws
With Stainless Nuts & Lock Washer
180
amp Rated.
OAL- 6-5/8", H 1-78"
5-3/4"Center To Center X
1/4" Mounting Holes
$22.50 ea. |

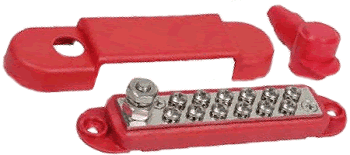

JB12-250R
(1) = 1/4-20" Stud Red Buss Bar
With Cover & Boot
(12) = 8-32"
Screws
With Stainless Nuts & Lock Washer
180
amp Rated.
OAL- 6-5/8", H 1-78"
5-3/4"Center To Center X
1/4" Mounting Holes
$26.50 ea. |
JB1-200B
#10-32" Stud
With Nut & Lock Washer
6/48 Volts DC Maximum Marine Grade
Your Cost
$5.50 |
JB1-200R
#10-32" Stud
With Nut & Lock Washer
6/48 Volts DC Maximum Marine Grade
Your Cost
$5.50 |
JB1-250B
1/4" Stud
With Nut & Lock Washer
6/48 Volts DC Maximum Marine Grade
Your Cost
$7.50 ea.
|
JB1-250R
1/4" Stud
With Nut & Lock Washer
6/48 Volts DC Maximum Marine Grade
Your Cost
$7.50 ea.
|
JB1-312B
5/16" Stud Junction Blocks
With
Nut & Lock Washer
150
amp Rated.
$8.25 ea. |
|
JB1-375B
3/8" Stud Junction Blocks
With
Nut & Lock Washer
250
amp Rated.
$10.50 ea. |
JB1-375R
3/8"
Stud Junction Blocks
With Nut & Lock Washer
250
amp Rated.
$10.50 ea.
|
JB1-MB
Mounting Base
Positive and Negative JB1 Series Junction Blocks
Will Accommodate #10-32 , 1/4" & 3/8" Junction Blocks
$7.50 ea.
|

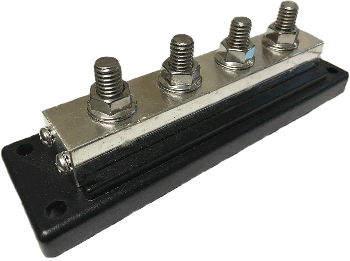

880100S
TERRA POWER SYSTEMS
BusBar 600 Amp 48 Volt 4 x 3/8" Studs
$107.50 ea.
|
JB1-375B-8
3/8" Stud Junction Blocks
With 8 8-32 Take Off Circuits
With
Nut & Lock Washer
250
amp Rated.
L=3.312in,
W=1.750in,
H=2.250in
Mounting Holes 2 - 9/16" Center to Center
$19.50 ea. |
JB1-375R-8
3/8"
Stud Junction Blocks
With 8 8-32 Take Off Circuits
With Nut & Lock Washer
250
amp Rated.
L=3.312in,
W=1.750in,
H=2.250in
Mounting Holes 2 - 9/16" Center to Center
$19.50 ea.
|
JB2-375B
3/8" Stud Junction Blocks
Through Wall Type
With
Nuts & Washers
250 amp Rated.
$16.50 ea. |
JB2-375R
3/8" Stud Junction Blocks
Through Wall Type
With
Nuts & Washers
250 amp Rated.
$16.50 ea. |
2002
5/16" Stud
High Amperes Connector W/Cover
6/48 Volts DC Maximum Marine Grade
Product Dimensions
1.06"H x 1.75"W x 3.30"D
Your Cost
$15.50
|
JB1-400
1/2" Stud Junction Block
With
Washer & Lock Nut
400
amp Rated.
$36.50 ea.
|
2016
2x5/16" Studs
High Amperes Connector W/Cover
These Studs are Insulated from each other.
6/48 Volts DC Maximum Marine Grade
Your Cost
$26.50
|
2303
150 Ampere Common BusBar 4 x 1/4" Stud Terminal
6/48 Volts DC Maximum Marine Grade
2"H x 2"W x 10"L
Your Cost
$24.75 |

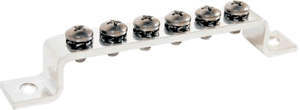

2306
Grounding BusBar 6 x 8-32 Screw Terminal
100 Amperes AC/DC
6/48 Volts DC Maximum Marine Grade
Your Cost
$7.75 |
2314
MiniBus 100 Amps
5X 8-32 Screw Terminals with cover
100 Amperes AC/DC
6/48 Volts DC Maximum Marine Grade
Your Cost
$18.75 |
2315
MiniBus 100 Amps, 4X 10-32 Stud Terminal W/Cover
100 Amperes AC/DC
6/48 Volts DC Maximum Marine Grade
Your Cost
$18.75
|
2701
DualBus 100 Ampere Common BusBar's
5 x 8-32 Screw Terminal
Combines
Negative and Positive buses on one block
Your Cost
$20.25
|

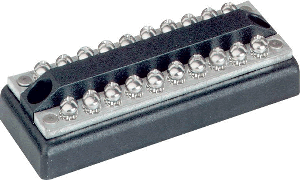

2702
DualBus 100 Ampere Common BusBar
10 x 8-32 Screw Terminal
Combines Negative and Positive buses on one block
Your Cost
$26.50
|
2709
Cover for DualBus PN 2701
Your Cost
$15.75 |
2710
Cover for DualBus PN 2702
Your Cost
$15.25
|
2715
Cover For BusBar PN 2301 and PN 2303
Your Cost
$4.50
|
Click Here For Drawing
2723
150 Amperes DC
6 / 48 Volts DC Marine Grade
Dual 5/16 Studs with 5x10-32 Screw Terminals
Positive and Negative Busbar's.
Clear polycarbonate cover snaps on.
Your Cost
$39.50
|
Jumper Terminals
Cole Hersee
46210-02
JT-R = $18.50 ea.
46210-03
JT-B = $18.50 ea
|
