Texas Industrial Electric has been servicing customers in the
San Antonio Texas and surrounding area since 1981.
We will be adding more content to our
Speedometer Drive Train area very soon.
Please take a look through our web site,and feel free
to contact us if you have any questions
.
Stewart Warner Products, Ratio Adapters,Speedometer Cable & Casing , Guages, And More.
Click Here To View A Drawing .90 o  5/8" x 18 Speedometer Head Angle Adapter For Tight Areas Behind The Dash.

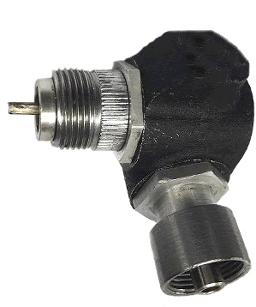

90 Degree Speedometer And Tachometer Head Adapter
5/8" x 18 Thread

Click Here To View Drawing Of The 407010-F Angle Box
"We Now Have Both Numbers In Stock"
407010-F
For tight areas behind the dash.
Reverse Rotation 411335-D

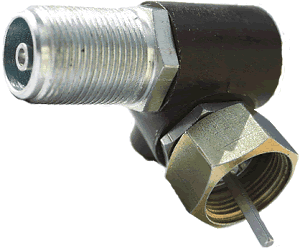

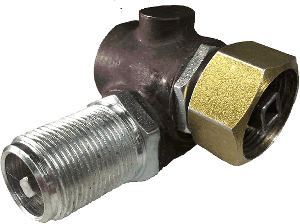

400 Series 7/8-18" 90 Degree Angle Adapters.

400 Series 90 Degree Angle Adapters,Direct Drive and Reverse Rotation.
Click On Image For More Information

7/8"- 18 Thread
Available in Direct Drive and Reverse Rotation.
Transmission Clearance,Engine Tachometer Take Off
Many Drive and Driven Tip Configurations Available.
Reverse Cable Direction at Transmission.

Stocking ratios
.250:1.000 , 500:1
.000, 1.000 :1.000, 1.500 :1.000, 2:1.000

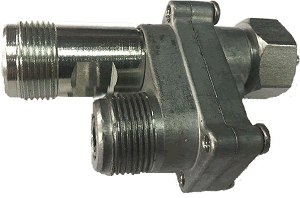

800 Series Drive Train Correction Ratio Adapters.800 Series Drive Train Correction Ratio Adapters.
Click Here or On Image for Drive & Driven Tips Selection
7/8" x 18 Thread
800 Series Drive Train Correction Ratio Adapters.
Mechanical Speedometer Adapter Correction Boxes
Can Be Assembled For Offset Or Straight Through Drive


700 Series Drive Train Correction Ratio Adapters.
Click Here or On Image for Drive & Driven Tips Selection
7/8" x 18 Thread
700 Series Drive Train Correction Ratio Adapters.



6600 Series Drive Train Correction Ratio Adapters.
7/8" x 18 Thread
6600 Series Drive Train Correction Ratio Adapters.
Will Replace Stewart Warner 666 Series Ratio Box
.

Inner Flexible Speedometer & Tachometer Core
HS101, 418614 .130" Left Lay Automotive Inner Core


HS104, 825128 .150" Left Lay Heavy Duty Inner Core


HS107, 418615 .187" Left Lay Extra Heavy Duty Core




Tips for .130" Cable Core
HT101
.130 x .156 Tang
.130x .156 Male Tang
400211
HT102
.130 x .203 Tang
.130x .203 Tand
33710
HT103
.130 x .187 Tang
.130 X .187 Tang
104461
HT115
.130 x .105 FM SQ.
.130 x .104 Femle Sq.
HT127
.130 x .104 SQ.
.130 x .104 male Sq..
418035
HT134 Tang
.130x .156
.130 x .156 Male Tang
63684
HT140
.104 Male Sq. Cable Tip.
.130 X .104 SQ.
HM142
F-8
.130 Cable Stop Collar

811024
.130 Collar

Outer Speedometer & Tachometer Housing / Casing
HC101 .243/.250 Steel
98578
.243 / .250 Galvanized Steel Outer Housing
HC105 .297 W / Vinyl Cover
.297  Galvanized Steel Outer Housing with Vinyl Covering.
HC106 .445 W / Vinyl Cover
816647-100
.445  Galvanized Steel Outer Housing with Vinyl Covering.
HC109 .330 / .333 Dual Casing
820905-100
.330 / .333 Dual Plastic Housing
HC111 .445 Steel
24068-100
.445 Galvanized Steel Outer Housing

Tips for .150" Cable Core
HT105
.150 x .150 Male SQ
HT105 /421643 .150 x .150 Male SQ.
421643
HT106
.150 x .152 Tang
HT106 /408758 /.150 x .152 Male Tang
408758
HT109
.150 x .104 SQ
HT109 /65358 /.150 x .104 Sq Male Tip
65658
HT111
.150 x .104 Female SQ
HT111 /65001 /.150 x .104 Sq Female Tip
65001

HT112
.150 x .152 Tang
With Groove

HT112 /421795 /.150 x .152 Male Tang with Groove
421795

HT113
.150 x .187 Female SQ
HT113 /409353 /.150 x .187 Sq Female Tip
409353

HT114
.150 x .187 Female SQ
HT114 / 36833 /.150 x .187 Sq Female Tip
36833
HT120
.150 x .213 Female Tang HT120 / 78869 .150 x .213 Female Tang Hole
78869
HT107
.150 x .104 Male SQ
HT125 / 65002 .150 x .104 Male SQ
65002
HT129
.150 x .124 Male SQ
HT129 / 98984 .150 x .124 Male SQ
98984
HT130
.150 x .187 Tang
HT130/ 64339 .150 x .187 Tang
64339
HT131
150 x .203 Tang
HT131/13909 150 x .203 Tang
13909
HT139
.150 x .104 Male SQ
HT139 / 95115 .150 x .104 Male SQ
95115
HT149
.150 x .191 Female Tang
HT149 / 96127 .150 x .191 Female Tang
96127
Ferrules Nuts
HN101
5/8-18 Thd. Round Nut
5/8-18"
820346-4
HN102
7/8-18 Thd. Round Nut
7/8-18"
820346-22
HN103
3/4-20" Thd. Hex Nut
3/4-20"
820346-17
HN104
3/4-20" Exernally Thd. Round Nut
3/4-20" Externally Thread
820346-16
HN105
5/8-18 Exernally Thd. Hex Nut
5/8-18" Externally Thread820346-7
HN111
7/8-18 Thd. Hex Nut
7/8-18"
820346-23
HN112
3/4-20" Thd. Round Nut
3/4-20"
820346-11, 820346-12
HN113
5/8-18 Thd. Hex  Nut
5/8-18"
820346-1



Ferrules .445" Diameter Heavy Duty Speedometer Casing
HF105
.420 / .445 Upper Ferruel For 3/4-20" Externally Thd. Nut
Upper Ferrule 3/4-20" Nut
820215-1
HF106
.420 / .445 Upper Ferruel For 5/8-18" Thd. Nut
Upper Ferrule 5/8-18" Nut
820214-4
820214-1
820214-1, SO-43  .420 / .445 Upper Ferruel For 5/8-18" Hex Thd. Nut
Upper Ferrule 5/8-18"Nut
HF111
820500-4 ,B-28  .420 / .445 Lower Ferruel For 7/8-18" Hex Thd. Nut
Lower Ferrule 7/8-18"Nut
With Bushing
820211-4
HF126 Hf126, 820211-2 Lower Compensating Ferrule  .420 / .445 Lower Ferruel For 7/8-18" Hex Thd. Nut
Lower Ferrule 7/8-18" Nut
For Compensating Tips
820211-2
HF125
820500-4 ,B-28  .420 / .445 Lower Ferruel For 7/8-18" Hex Thd. Nut
Lower Ferrule 7/8-18"Nut
820500-4
HF123
Upper Ferrule for 7/8-18 Male Thd .420 / .445  Speedomerer Casing.
7/8-18" Thd. Male Ferrule
820500-11


HF147
820213-3. B-25  Upper Ferrule for 5/8-18 Male Thd .420 / .445  Speedomerer Casing.
5/8-18" Thd. Male Ferrule
820213-3
Adapt Your Ford Plug in Transmission
 to use the 5/8-18" Speed Pulse Generator / Signal Generator
For Electric Speedometer.

Ford Plug in Transmission To A 5/8-18" Speed Pulse Generator / Signal Generator For Electric Speedometers.
FD625
Ford Transmission to 5/8-18" Nut.
Tips for .187" Cable Core
HT104
.187 x .203 Tang
HT104 / 36912 /.187x .203 Male Tang
32912
HT116
.187x .156 Tang
HT116 / 415996 .187x.156 Male Tang
415996
HT132
.187 x .187 Tang
HT132 / 101254 .187x .187 Male Tang
101254
414676
.187 x .193 SQ. Hole

Stewart Warner 414676 .187 x .193 SQ. Hole

Compensating Tips for .150 Inner Core
SSW HM121
.124 sq. X .156 Tang
.124 sq. X .156 Tang
SW 818750

SSW HM122
.124 sq. X .187 Tang
.124 INT, SQ X .187 TANG
SW 817769

SSW HM123
.124 sq. X .203 Tang
.124 INT, SQ X .203 TANG
SW 817759


SSW HM124
.124 sq. X .104 SQ
.124 INT, SQ X .104 SQ
SW 818749

SSW HM125
.124 sq. X .150 SQ
IHC Truck
.124 sq. X .150 SQ. For IHC Trucks
SW 817769
SSW HM144
.124 sq. X .104 SQ
Ford Truck
.124 INT, SQ X .104 Sq Ford Truck
SW 820152
Ferrules for .243" Diameter Outer Casing
.243 / .250 Upper Ferrule
HF113
Upper Ferrule for 5/8-18 Nut .243 / .250 Speedomerer Casing.
94353
Use With HN101 Nut

243 / .250 Lower Ferrule
HF112

Lower Ferrule for 7/8-18 Nut .243 / .250 Speedomerer Casing.
93354
Use With HN102 Nut

.243 / .250 Upper Ferrule
7/8-18 Thd.

Upper Ferrule for 7/8-18 Male Thd .243 / .250 Speedomerer Casing.
69930



Ferrules for .297" Diameter Outer Casing
Lower Ferrule
HF101
Lower Ferrule for 7/8-18 Nut .297 Speedomerer Casing.
63315

Upper Ferrule
HF104
Upper Ferrule for 5/8-18 Nut .297 Speedomerer Casing.
102547

7/8-18 Thd. Male Ferrule
HF110
Upper Ferrule for 7/8-18 Male Thd .297 Speedomerer Casing.



Ferrules for .333"Diameter Outer Housing
HF114
HF114 / 823813 GM Upper Ferruel .330 / .333 Casing
GM Upper Ferrule
823813
HF115
HF115 / 820051 Chrysler / Dodge  Upper Ferruel .330 / .333 Casing
Chrysler / Dodge
820051
HF116
HF116 / 821146-1 Ford Upper Ferruel .330 / .333 Casing
Ford Upper
821146-1
HF119
.330 / .333 Lower Ferruel For 7/8-18 Thd. Nut
Lower Ferrule for 7/8"-18 Nut
820733-10

Use With HN102 Nut
HF121
HF121 / 824012  Ford Lower Ferruel .330 / .333 Casing
Ford Lower Plug -In
824012
HF131
.330 / .333 Upper Ferruel For 5/8-18 Thd. Nut
Upper Ferrule For 5/8"-18 Nut
820733-3

Use With HN101 Nut

7/8-18" Thd. Male Ferrule
820733-33
Upper Ferrule for 7/8-18 Male Thd .330/.333 Speedomerer Casing.


HF139
HF139 / 827746,  C-41 Chrysler / Dodge  Upper Ferruel .330 / .333 Casing
Chrysler / Dodge
HF142
HF142m A-60  Ford Lower Ferruel .330 / .333 Casing
1983 Ford Lower Plug-In

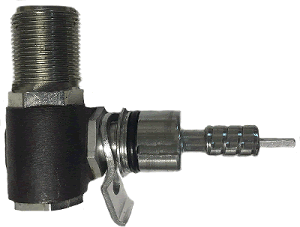

Adapt Your Ford Plug in Transmission
 to use the G M type Speedometer Cable & Housing ,
Great For Speedometer Correction Adapters.

Adapt Your Ford Plug in Transmission to use the G M type Speedometer Cable & Housing , Great For Speedometer Correction Adapters.
FDGMA
Ford Lower Plug - In to 7/8-18" Adapter
Ford Transmission to 7/8-18" Cable Adapter.

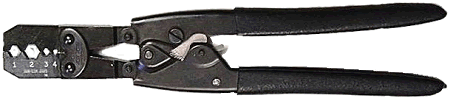

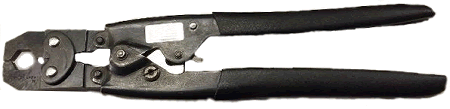

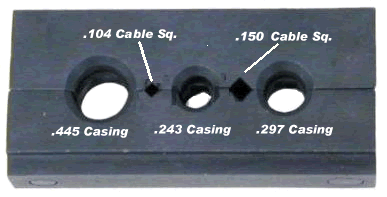

.330/333 & .445 Cable & Casing Crimp Tool
CCCT
.330/333 & .445 Cable & Casing Crimp Tool ,This Tool Will Crimp Most of the Ferrules Used. Will Crimp The .130 & .150 Cable Tips.
This Tool Will Crimp Most of the Ferrules Used. Will Crimp The .130 & .150 Cable Tips.
