TECH
TIPS:
ELECTRIC FAN
Electric
fans should be mounded using metal brackets that attach to either
the radiator tanks or radiator.
It is not recommended to use nylon tabs as these tabs can cause
damage to the tubes over time due to engine vibration.
When using
Hot Rod Air's line of reversible electric fans, the fan blades
and the polarity of the motor must both be changed to convert
fans from puller to pushers
or vice versa.
Whether using a single fan or a dual fan setup, a combined airflow
rating of at least 2500 CFM must be achieved to cool an engine.
A puller fan mounted on the engine side of the radiator is recommended
as the optimal electric fan setup. Although pusher fans on the
grille side of the radiator can provide airflow, they can also
restrict airflow created at highway speeds. The combination of
a pusher fan on the grille side of the radiator and a puller fan
on the engine side is not recommended as the two fans will "fight"
one another causing less than optimal airflow.
|
Mustang
Radiator
Electric Fan Area
Click
Here For
Electric Fan Wiring kits
|
ELECTRIC COOLING FANS / SHROUDS
HEIGHT
|
WIDTH
|
DEPTH
|
CFM
|
PART
NUMBER
|
YOUR
COST
|
19"
|
25
1/8"
|
4
1/2"
|
2700
|
03-0040
|
|
18
1/8"
|
20
1/8"
|
4
1/2"
|
2700
|
03-0050
|
|
18
7/8 "
|
21
1/4 "
|
4
1/2"
|
2700
|
03-0070
|
|
HIGH PERFORMANCE REVERSIBLE ELECTRIC
FANS
|
DESCRIPTION
|
DIAMETER
|
DEPTH
|
CFM
|
PART
NUMBER
|
YOUR
COST
|
10"
REVERSIBLE FAN "S" BLADE
|
10"
|
2.62"
|
1438
|
03-3010
|
|
12"
REVERSIBLE FAN "S" BLADE
|
12"
|
3.22"
|
1771
|
03-3012
|
|
14"
REVERSIBLE FAN "S" BLADE
|
14"
|
3.25"
|
1980
|
03-3014
|
|
16"
REVERSIBLE FAN "S" BLADE
|
16"
|
4.17"
|
2416
|
03-3016
|
|
16"

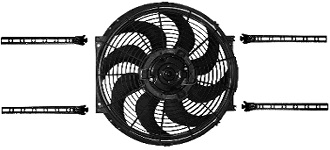

REV. 225 WATT FAN
"S" BLADE
|
16"
|
4.41"
|
2700
|
03-3216
|
|
DUAL
11" REVERSIBLE FAN
|
11"
|
3.22"
|
2060
|
03-0011
|
|
DUAL
13" REVERSIBLE FAN
|
13"
|
3.35"
|
2700
|
03-0013
|
|
Reversible Fans come with 10 position metal mounting brackets
SPAL

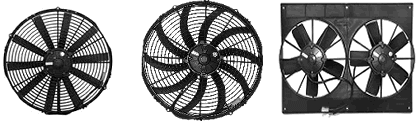

HIGH PERFORMANCE ELECTRIC FANS
|
STRAIGHT
|
"S"
BLADE |
DUAL 11" W/SHROUD |
Click
On The Fan Description For Technical Information
DESCRIPTION |
DIAMETER |
DEPTH |
CFM
|
PART
NUMBER |
YOUR
COST |
|
10" |
3.7" |
1070 |
03-0182 |
|
|
10" |
3.7" |
1070 |
03-0181 |
|
|
11" |
4.25 |
2780 |
03-0846 |
|
|
11" |
3.7" |
1390 |
03-0178 |
|
|
11" |
3.7" |
1390 |
03-0177 |
|
|
12" |
3.7" |
1630 |
03-0176 |
|
|
12" |
3.7" |
1630 |
03-0175 |
|
|
12" |
3.39" |
1360 |
03-9439 |
|
|
12" |
3.39" |
1360 |
03-9822 |
|
|
13" |
3.39" |
1710 |
03-9847 |
|
|
13" |
3.39" |
1710 |
03-9851 |
|
|
14" |
3.39" |
1720 |
03-0249 |
|
|
14" |
3.39" |
1720 |
03-0248 |
|
|
14" |
3.39" |
1720 |
03-9119 |
|
|
14" |
3.39" |
1720 |
03-9120 |
|
|
16" |
3.39" |
2360 |
03-0231 |
|
|
16" |
3.39" |
2360 |
03-0232 |
|
|
16" |
3.39" |
2070 |
03-9825 |
|
|
16" |
3.39" |
2070 |
03-9823 |
|
SPAL
MOUNTING BRACKET EA. |
|
|
|
99-0001 |
|
|
